Environments and Projects

Vaibify organizes work around two ideas. An environment is where the work runs: a Docker container, or a folder on your own computer. A Project is what the work is: a scientific analysis decomposed into Steps that vaibify runs, watches, tests, and grades on the PROOF Ladder. One environment can hold several Projects. You manage both through the dashboard in your browser.

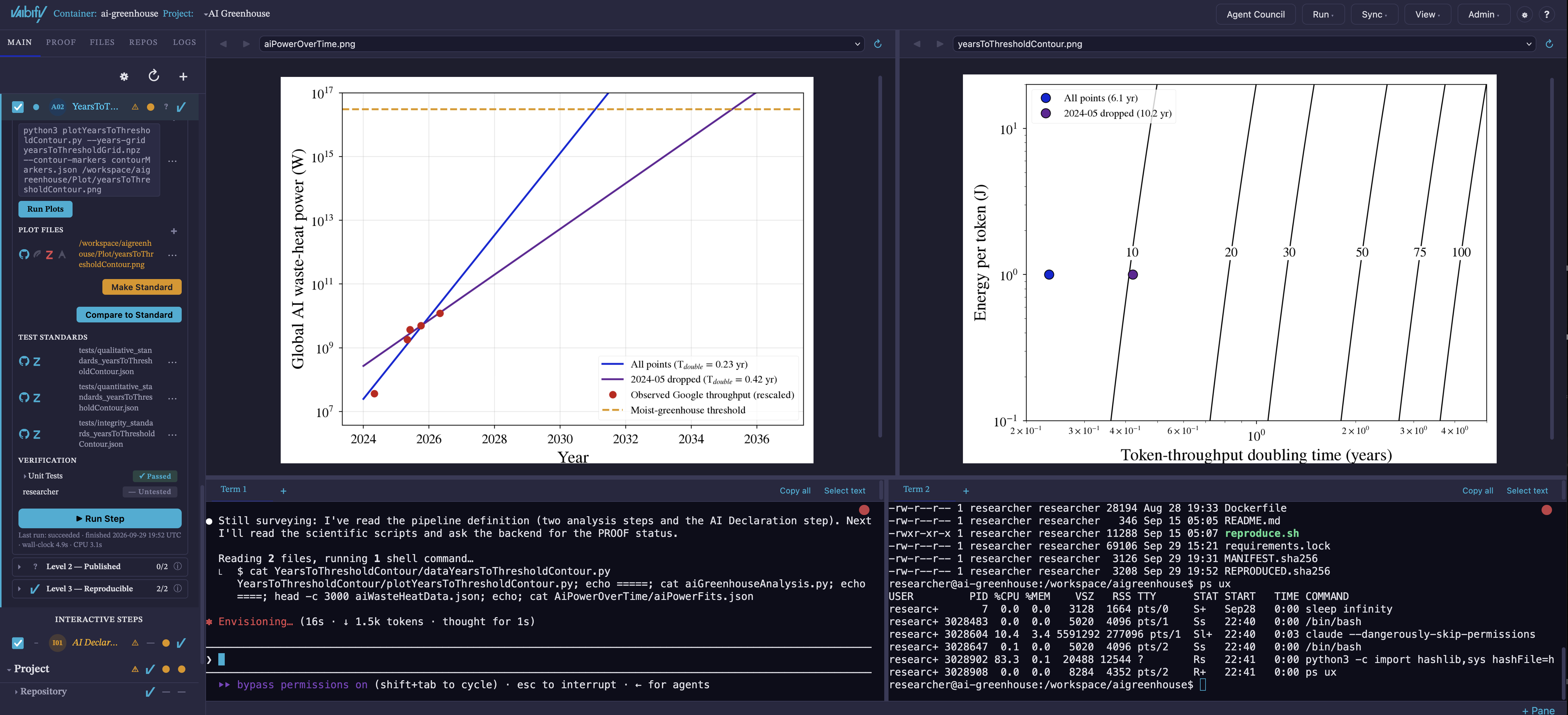

The vaibify dashboard

Environments

What an environment is

A container environment is a Docker container built from a vaibify.yml recipe. Its files live in a workspace volume (/workspace) that is separate from your computer’s disk, its user is unprivileged, and nothing it runs can read or change files on your computer. That containment is what makes it safe to let a coding agent work for hours without approving each command, and a pinned, rebuildable image is what lets a result reach PROOF Level 3.

A host environment (“This machine”) is a folder on your own computer. Nothing is built, so you can start immediately, but every command runs with your full user authority: your files, your network, your stored credentials. Vaibify says so before you open one, marks every screen with a HOST MODE — uncontained badge, and opens each terminal with a reminder that the shell runs on your machine. A host environment cannot reach PROOF Level 3 or provide Supervised attribution. It suits first contact and experimentation; containerize it when the work becomes real.

The environments page

Running vaibify with no subcommand opens the environments page in your browser. It lists every environment registered on this computer under This machine, with four buttons beside the heading:

Button	Action
+	Add an environment.
↻	Refresh the list.
⧉	Open a new vaibify window (a separate browser session).
?	Help: creating an environment, a legend of tile marks, troubleshooting, and the leftover-processes glyph.
⚠	Shown only when vaibify found something left over on this computer. Orange with a count while anything is listed; red when an automatic cleanup could not run.

Clicking ⚠ opens Leftover processes and files. vaibify cleans up by itself what it can prove is garbage: a lock file no process holds, a credential file no container mounts, a shadow-rerun lock nothing holds, a terminal left by a vaibify window that died, a vaibify connect shell whose command line was killed. Those cleanups run every ten minutes and at startup, and the bottom of the panel lists each one with what it did, or why it could not run. What vaibify cannot prove is listed with its evidence, in two tiers:

Proven orphaned: vaibify itself launched it, or it is a plain fact, such as a container created without an init process.
Possibly orphaned: it may be left over, and it may be yours. An interactive shell in a container that no vaibify window opened is listed here because vaibify cannot tell your own docker exec or an editor’s from a leak; a caffeinate -s not in vaibify’s own ledger is listed here because you may have started it yourself. Read the evidence before removing.

Remove selected ends every process in a chosen session and proves it empty, ends a keep-alive, or removes a stopped container with its volumes kept; Remove all proven never includes a session. An item running an AI agent asks for confirmation first, and an item that is already gone by the time you act says so. A question vaibify could not answer, such as a container whose processes could not be read, is listed as could not be checked with nothing to remove. A container held by another vaibify window is never actionable from this one.

Each tile shows a status light, the name, and a chip reading contained or uncontained. Clicking a tile opens the environment, building or starting the container first if needed. From inside the dashboard, Admin > Environments returns here.

When something fails on this page, the error message ends with Click to run a diagnosis. The click runs vaibify’s checks of this computer and shows each finding with its remedy.

Adding an environment

+ opens Add Environment, which first asks where the work runs:

Container — contained and reproducible; needs Docker.
This machine — no container; for experimentation.
Reproduce a published project — re-run somebody else’s published result in a throwaway container. See Reproducibility.

It then asks how the environment arrives:

Add Existing — choose a directory that already holds a vaibify.yml (one a collaborator shared, or one you cloned). The existing file is read, never overwritten.
Create New — the creation wizard writes a new vaibify.yml.

The container wizard

Create New walks through these pages. A host environment needs only the directory, the template, and the summary.

Page	What it sets
Project Directory	The folder on your computer that holds `vaibify.yml`.
Template	The starter files: `sandbox`, `toolkit`, or `workflow` (see Templates).
Project Name	The project name and the Docker container name.
Python Version	3.9 to 3.14; 3.12 by default.
Repositories	Git URLs cloned into the workspace at first start (required for `toolkit`).
Features & Authentication	Coding-agent command-line tools, JupyterLab, LaTeX, R, Julia, a PostgreSQL client, DVC, and NVIDIA GPU support; GitHub authentication; runtime options (sleep prevention on macOS, network isolation, X11 display forwarding); and resource limits.
Packages	System packages (apt) and Python packages, with an Advanced section for the package manager, pip flags, container user, base image, and workspace root.
Summary	Review, then Create.

Create writes vaibify.yml and registers the environment; the image is built the first time you open its tile. A minimal image builds in minutes, and large feature sets can take an hour or more. Anything missed can be added later: install it from a terminal inside the container (lost on rebuild), or add it to vaibify.yml and rebuild (permanent). The full list of vaibify.yml keys is in Advanced Installation.

Templates

A template is the small set of starter files copied into a new environment. Three ship with vaibify, one for each way of working:

Template	Contains	Use it when
`sandbox`	No Project file	You want to explore freely: write code, make plots, try ideas. There are no steps or tests, so a sandbox sits below Level 1 of the PROOF Ladder; its only property is containment.
`toolkit`	A Project file with no steps, and a `README.md`	You are developing several code repositories that must work together. Each repository listed on the wizard’s Repositories page is cloned and appears in the Repos panel with its branch, uncommitted changes, and push controls.
`workflow`	A runnable two-step Project	You already know the analysis is a sequence of steps. The first step draws random samples; the second plots their histogram, receiving the samples through a `{step:generate-samples.samples}` token, so a new environment makes a figure on its first Run. Replace both steps with your own.

If you are unsure, start with sandbox. The choice is not permanent: exploratory work can become a Project later (see Turning exploration into a Project).

Containerizing a host environment

A host environment’s tile menu (⋮) offers Containerize Environment. The wizard asks for a container name, where the image comes from (built from a Dockerfile, or, for a cloned published project, the author’s pinned image), the usual container settings, and which of the directory’s files to copy into the container. The copy is one-way and made once, when the container first starts: a container’s workspace is a separate volume, not your folder, and your originals are never moved or deleted. The directory’s .git comes along, so the container’s copy is a real repository. If the directory has no Project file yet, one is created, because a container is always a Project.

Tile actions

A container tile’s ⋮ menu offers Start, Stop, Restart, Rebuild, and Force Rebuild, then Release (when this tab holds the container), Remove from list, and Delete environment…. Its ⚙ opens the container settings, including the resource limits below. A host tile’s menu offers Containerize Environment, Release, and Remove from list.

The two removals differ in what they touch:

Remove from list unregisters the environment and touches nothing else. The container, volumes, image, and files stay; adding the directory again brings the tile back with its work intact.
Delete environment… permanently removes the container, the workspace volume (every file inside the container you have not copied out), the credentials volume, every image built or obtained for it, and the registry entry. Your project directory on your computer, its git history, and anything already pushed or published are not touched. To confirm, type permanently delete <name> exactly; the server checks the same phrase. Deletion is refused while the environment is open in another browser session, held by another vaibify process, or carrying unsettled operations, and an in-container agent can never request it. If any part fails, the tile stays and the message says what did and did not go.

Multiple projects in one environment

Opening an environment shows its Project Hub. A line names the environment (Environment: <name>, or Environment: this computer for a host environment), followed by Available Projects:, one card per Project file found in the environment’s repositories.

Blank Project opens the dashboard with a terminal and the file tree but no steps, for work that has none yet.
New Project is a three-step wizard: a display name, a location (an existing git directory, or a new directory vaibify creates and initializes as a repository), and a confirmation.

Inside the dashboard, click the Project name in the toolbar to switch Projects or start a new one. Projects in one container can run at the same time: starting a run while another Project’s run is active asks first (Run anyway), because the runs share the container’s CPU and memory limits. A toolbar badge shows when another Project in the container is running.

Sessions

Each environment can be open in only one browser session at a time, and one browser session holds at most one environment.

A second tab that tries to open an environment already in use sees its tile grayed out with In use in another browser session.
Opening a second environment from the same tab asks whether to release the first. Release on the tile menu does the same, and returning to the environments page releases the environment automatically. Releasing only drops the tab’s hold: the container keeps running, and a release is refused while a run or an agent is active in it.
Reloading a tab keeps its hold. Closing a tab does not stop a run, and a dashboard opened later shows it.
To work on two environments at once, use ⧉ New vaibify window (on the environments page, the Project Hub, and the Admin menu).
Listing and stopping live sessions is done from the command line; see CLI Reference.

Terminals and quiescence. A shell can start a process that detaches from everything vaibify tracks, so once a terminal has been used in an environment, vaibify reports that environment’s quiescence as unproven on release or shutdown rather than claiming it is quiet, and its tile’s chip reads quarantined. Click the chip to see why, then Reconcile now to settle it; when the dashboard cannot clear it, the dialog gives the command to run on the host (see CLI Reference). On a host environment, processes started from a terminal can keep running after the session closes.

Core allocation

A container uses all of this computer’s cores minus one unless you set a limit, leaving one core for your operating system. Set a limit in the wizard’s CPU cores field or in the tile’s ⚙ under CPU core limit; it is stored as cpuLimit in vaibify.yml and is capped at the number of cores the computer has. Memory is unlimited unless you set Memory (GB) (memoryLimitGigabytes). A process that reaches the memory limit is killed by the kernel (see Memory). The limit includes swap: the container cannot swap beyond it, so a limit means the same on every computer (if a Linux computer’s kernel cannot limit swap, Docker cannot either). An AI agent with the jobs it starts often needs several GB, so leave it at 0 unless you need a cap. When an environment enables an AI agent and caps memory below 5 GB, vaibify doctor, vaibify start, the dashboard, and saving in ⚙ each say so; 5 GB is a starting point, not a requirement.

An edit to vaibify.yml takes effect when the container next starts. A change saved in ⚙ is written there and, if the container is running, applied at once when that cannot kill a process: a higher memory limit (its swap limit rises with it, as Docker requires) or any change to the CPU limit. A lower memory limit, a memory limit on a container that had none, and removing a limit wait for the next start. The save says, for each limit it changed, whether it was applied, could not be applied (in Docker’s own words), or waits for the next start. When a running container’s limits differ from vaibify.yml, a banner says which limit differs and what the next Restart will apply, including when the container can swap beyond its memory limit; it says nothing when the running limits cannot be read. View > Resource Monitor shows live CPU and memory use, the memory limit, the number of processes killed for lack of memory, and the container’s disk usage, and warns when the disk is nearly full.

Steps run one at a time, so parallelism comes from the scripts themselves. The Project’s Cores setting (iNumberOfCores) is handed to commands as the {iNumberOfCores} token. Vaibify passes the number through unchanged; the convention that -1 means “all cores minus one” is for your script to implement.

Projects

A Project is a JSON file (the Project file) kept inside a git repository. It lists the Steps of an analysis in order. Vaibify reads the file to run the steps, track the files they read and write, decide when a result is stale, and grade each step and the whole Project on the PROOF Ladder.

Turning exploration into a Project

Work that began in a sandbox becomes a Project with a button. Which button depends on where the work lives:

In a container, open the Files tab and go into a directory directly under the workspace. A Make this directory a Project bar appears; give the Project a name and press Make Project. Vaibify makes the directory a git repository if it is not one, adds a first commit if it has none (existing history is never rewritten), and writes the Project file.
On this computer, every host environment starts as a sandbox and shows a Convert to Project… bar on its Files tab. Choose Host Project to keep running directly on this machine, or Containerized Project to copy the directory’s files into a new container (see Containerizing a host environment).

To start a Project from scratch in an existing environment, use New Project (see Multiple projects in one environment).

Steps

The division of a Project into Steps is yours to choose; small steps are easier to verify. Each step is one of two kinds:

An automated step runs from files already on disk with no input from you.
An interactive step needs a person at a shell. Run in Terminal opens a terminal tab, runs the step’s commands there, and watches for the exit code, so the step settles when you finish.

Labels are counted per kind: A03 is the third automated step and I01 the first interactive step, whatever their positions in the list. Reordering steps never breaks a reference to another step.

A step’s directory is named after the step. Remove the spaces and capitalize the first letter of each word, keeping the rest as typed: “Fit the model” lives in FitTheModel. Names may contain only letters, digits, spaces, and hyphens, and no two steps may map to the same directory (compared without regard to case). Parent folders are free: analysis/FitTheModel is fine. Rename… on a step’s right-click menu moves the directory and updates every reference to it.

The parts of a step

Expanding a step shows its parts, grouped under the three PROOF levels. Level 1 holds the step’s own material:

Part	What it holds
Description	A few sentences on the step’s goal, for people and agents.
Input data	Raw files the step reads that no other step produces. A step that needs none is declared with No input data needed; a step with neither cannot reach Level 1.
Data analysis commands	The commands that compute results.
Output data	The files those commands write.
Plot commands	The commands that make figures.
Plot files	The figures. Make Standard saves a figure as the reference and Compare to Standard shows the two side by side.
Test standards	The stored values the quantitative tests compare against.
Verification	Unit tests, dependencies, and your own approval.

Every step needs your approval. The Verification section has a row labeled with your user name; click it to record that you have inspected the step’s outputs (clicking again cycles through passed, failed, and error). No test substitutes for it, and an in-container agent cannot set it. Unit tests come in three kinds (integrity, qualitative, quantitative) and are built by Generate Tests; see the Testing Model.

Dependencies

When one step uses another’s output, the later step depends on the earlier one. A step is fully verified only when everything it depends on is verified, and only when its inputs were written before it last ran. Vaibify learns dependencies two ways.

Detected automatically. When you save a step’s data analysis commands, or press Update Dependencies in the step’s expanded Dependencies row, vaibify scans the scripts those commands run for file reads (in Python, R, C, Fortran, Rust, JavaScript, Perl, shell, Julia, MATLAB, and Go, and in JSON and YAML files). The Dependency Detection dialog lists what it found as detected, possible, and manual dependencies, and you confirm them.

Declared by the researcher. Soem dependencies are subtle and evade capture by the automatic detector. In those cases, you can declare dependencies.

Run > Verify Dependencies checks that every token points to a real output of an earlier step, and View > Dependency Graph draws a graph that illustrates how all the steps depend on each other.

Polling

The dashboard re-reads the state of the Project every 5 seconds: which declared files exist, their modification times and hashes, and whether the dependencies still hold. Change the interval with the Poll Interval slider (1 to 60 seconds) in the Project settings (⚙ above the step list); the setting applies to the current tab.

Polling is what keeps a verified result honest. A step loses its verified standing, and its ⚠ and level cells turn orange or red, when:

a declared input data file changed since the step last ran (“Input data modified since last run”);
one of the step’s scripts was edited after its outputs were made;
its outputs changed after you approved them, or after its tests last passed;
an earlier step it depends on produced new outputs (“Upstream changed; re-run to clear blocker”);
a declared output is missing, or a test failed.

The step’s expanded view names the stale files in plain words, such as “Tests older than data scripts” or “User verification older than plot files”, so you know what to re-run or re-inspect. The same applies whether the change came from you, a script, or a coding agent.

Running steps

The toolbar’s Run menu runs and checks the Project:

Item	Action
Run Selected Steps	Run the steps whose run checkbox is ticked.
Run All Steps	Run every step in a Project.
Clean Outputs	Delete every automated step’s output data and figures and reset their verification, without running anything.
Force Run All (Clean)	Clean, then run everything.
Stop This Project’s Run	Stop this Project’s running processes; other Projects in the container keep running.
Verify Outputs	Check that every declared output exists.
Run All Unit Tests	Run every enabled step’s tests without running its commands.
Verify Dependencies	Check every cross-step token.
Check Files Against Manifest	Re-hash every file pinned in `MANIFEST.sha256` and report which differ.
Verify Level 3 Reproducibility	Rebuild and re-run in a throwaway container; see Reproducibility.
Standardize All Plots	Save every step’s current figures as its standards.

Interactive steps keep their outputs through Clean Outputs, because a person made them. Cleaning without re-running is how you see a Project emptied: when the outputs reappear, you know your machine produced them.

A step’s right-click menu offers Run Step, Edit Step, Rename…, Set Runtime Limit…, Run From Here, Insert Step Before, Insert Step After, and Delete Step. Steps can be reordered by dragging. + above the step list adds a step.

How a run proceeds. Steps run one at a time, in order. Within a step, vaibify runs the data analysis commands (skipped for a plot-only step), then the step’s tests, then the plot commands, each from the step’s directory. A failed step does not stop the steps after it, but a step whose referenced input file is missing is skipped, with the missing path named in the log.

Runtime limit. A step’s runtime limit is an advisory ceiling in seconds. Past it, the step’s run light blinks red as a possible hang, but the run is never stopped. Right-click a step and choose Set Runtime Limit… to set one (the dialog suggests twice the step’s last successful runtime), or set the Project default under Runtime limit (s) in the settings. A step limit of zero means “use the Project default”, and a Project default of zero means no limit.

Long runs. Closing the browser does not stop a run: the run belongs to vaibify’s server process, not to the browser tab, and a dashboard opened later shows it in progress. The live output is a stream, so have long steps write anything that matters to a file.

Memory

A process that reaches its container’s memory limit is killed by the kernel, often an AI agent and the jobs it started, and it cannot report its own death. The hub therefore checks every open container every 15 seconds.

The memory chip beside the environment name appears only when there is something to warn about; while memory is measured and below the limit, the toolbar shows nothing. Just after you open an environment, before the hub’s first measurement of it, it reads Checking Memory (neutral, pulsing); if no measurement arrives within 45 seconds it turns gray, as below. When it warns it reads, for example, “Memory ~5.2 / 6 GB”: memory in use, less the file cache the kernel would reclaim first (the figure docker stats reports), against the limit. It appears amber, with one warning toast, at 85% of the limit and leaves below 80%; memory can reach the limit between two checks, so amber is not a promise of warning. It appears gray, with the reason in its tooltip, whenever the hub could not measure (the container is stopped, it did not answer within 5 seconds, or the last measurement is more than 45 seconds old) or the dashboard could not reach the hub. Gray never means “fine”. It also appears, red-edged, while the hub holds a kill for the container. It says no limit for a container without one, and clicking it opens ⚙ at the memory limit.

Each kill is reported once, with an error toast and a banner, and the chip counts kills for as long as the hub holds them. When Docker reports that a stopped container’s main process was killed for lack of memory, the next start says so, in the dashboard and in vaibify start. The kernel keeps counts, not a log, so a report names the interval in which the count rose, mentions the container’s limit only when the limit counter rose in the same interval, and never names the process killed (that needs a kernel log only a privileged container can read). Every report ends with what to do: check that the work the killed process was part of is still healthy, resume an AI agent’s conversation (it is on the workspace volume; for Claude Code, claude --resume), and raise the limit. The history lives in the hub’s memory: after a hub restart, a running container’s earlier kills are reported again as kills whose time vaibify did not observe.

Recreating a container discards its writable layer. Restart, Rebuild, Force Rebuild, and the pinned-image actions create a new container, so everything outside its mounted volumes and host directories is lost, including an agent’s scratch files in /tmp. Each confirmation measures /tmp first and keeps Confirm disabled until it says, for example, “Files in the container’s writable layer, including 1.4 GB in /tmp, are discarded; mounted volumes and host directories are preserved.” When /tmp cannot be measured, it says why and enables Confirm anyway. Copy out anything you want to keep first.

Project size limits

The first time a Project reaches 100 steps, vaibify shows a one-time Project milestone notice: polling and verification take noticeably longer at that size. A Project cannot exceed 500 steps; adding a 501st is refused with Step limit reached. Split larger analyses into sibling Projects in the same repository.

The dashboard

Layout

Toolbar — the logo; the environment (Container:, or Directory: for a host environment) and, when there is a warning, its memory chip (see Memory); the Project: name, which opens the Project switcher; up to three vaibify checks that light up as Levels 1–3 are attained; the Agent Council button; the Run, Sync, View, and Admin menus; and, at the far right, a gear for this computer’s session settings and the ? Help button.
Left panel — tabs Main, PROOF, Files, Repos, and Logs. A Blank Project shows only Files, Repos, and Logs.
Viewing windows — two side-by-side viewers for figures and text.
Terminal strip — terminal tabs and panes along the bottom.

The View menu holds Dependency Graph, Open in VS Code, Resource Monitor, Zenodo Status, and Default Layout. The Admin menu holds Environments, Projects, New vaibify window, Environment Info, and Quit. The Sync menu and the PROOF tab are described in Connecting to External Resources and The PROOF Ladder.

The Main tab

The Main tab has two collapsible blocks. Steps holds the per-step work, which is where Level 1 is earned. Project holds the requirements that apply to the whole Project, where Levels 2 and 3 are earned. Both banners carry the same status cells as the rows beneath, so a collapsed block still reports its state. Above them sit ⚙ (Project settings), ↻ (refresh remote status), and + (new step).

Each step row shows, left to right: the run checkbox, the run light, the label and name, a warning column (⚠), and the L1 | L2 | L3 cells. Clicking a cell opens the step at that level. Expanded, a step opens onto the first level it has not yet attained; Level 1 ends with Run Step and a Last run line giving the outcome, finish time, and wall-clock and CPU time.

Viewing windows

Click any file in a step, the Files tab, or the Logs tab to open it in a viewer. PDF, PNG, JPG, and SVG files display as images, and other text files as text; binary data files cannot be viewed. The two viewers make side-by-side comparison easy. The ✎ Edit button opens a small text editor for quick changes such as an input parameter; it is not meant to replace an editor or a coding agent. Live run output streams into a viewer, and the Logs tab lists past run logs.

Terminal

The terminal strip opens shells inside the container (or, for a host environment, on your computer), with tabs and panes. Start a coding agent from a shell; the Using AI section of the Help panel lists the commands. A program that takes over the mouse, such as an agent or an editor, also takes your drag gestures. To get text out:

Select text in the pane’s tab bar gives the mouse back to the pane, so dragging selects; turn it off to give the mouse back to the program.
Shift + wheel always scrolls the pane.
Copy all copies the pane’s whole scrollback.

Selected text is copied automatically; Cmd+C, Ctrl+Shift+C, and Ctrl+Insert also work.

A program that is killed outright, such as an agent killed for lack of memory, never hands the mouse back, and every mouse move then prints characters like 35;97;9M at the prompt. A container’s shell switches those modes off before each prompt: it reads your own ~/.bashrc first, adds its prompt hook after yours, and passes on your last command’s exit status. If a pane still misbehaves (a shell started earlier, or one that is not bash), press Reset in the pane’s tab bar, which switches the modes off and keeps the scrollback.

Moving files in and out

In. Drag files or folders from your computer onto the Files tab’s drop zone (Upload from this computer) or onto a folder row. Folders keep their structure; .git and .vaibify folders inside them are skipped. A file of the same name is replaced only after you confirm. There is no fixed size limit: vaibify checks the disk has room before sending anything.
Out. Right-click a file and choose Download to this computer, or a folder and choose Download as .tar. Files land in your browser’s download folder.
From a terminal. Files can also be copied in and out from the command line; see CLI Reference.

Opening the container in VS Code

View > Open in VS Code opens the running container in a new VS Code window, leaving any window you already have alone. It needs VS Code’s Dev Containers extension, and it is hidden when the dashboard is driving a remote machine. The first time, your browser and VS Code each ask you to confirm opening the link.

The Repos panel

The Repos tab lists the git repositories in the environment with their branch, uncommitted changes, and push controls. Changes to build products (compiled files, caches, package metadata) are ignored, so a freshly installed repository reads as clean. Push commits and pushes the tracked changes; the gear’s Push files… lets you pick individual files. When a new repository appears in the workspace, vaibify asks whether to Track or Ignore it.

Environment Info

Admin > Environment Info reports facts about the image this session is connected to: its digest and image ID, architecture, recipe fingerprint (a hash of the build inputs), the archive epoch of its compiler toolchain, and versions probed inside the container. Any value vaibify cannot read shows as unknown rather than a guess.

The Help panel

? at the right of the toolbar opens the Help panel: a link to this documentation, Using AI (how to start a coding agent in the container and why skipping its per-command prompts is safe there), the Legend of every symbol (Steps, Project, Level status lights, Files and remotes), and terminal tips. The legend is generated from the same catalog the dashboard draws from.

Status lights and colors

Run lights

Light	Meaning
Hollow gray	Not run in this session.
Filled gray	Queued (or skipped).
Blinking orange	Running now.
Blinking red	Running past its runtime limit; may be hung.
Solid red	The last run failed.
Purple	Stopped by you.
Pale-blue dot	The last run succeeded.

Level cells

Cell	Meaning
Hollow gray circle	Not started: no outputs on disk and no activity at this level.
Gray filled circle	Unassessed: outputs exist, but no tests, checks, or sign-off yet.
Red circle	No requirements met.
Orange circle	Partially met.
Vaibify badge	Attained: every requirement at this level is met.
Question mark	Unknown: remotes have not been checked recently; refresh to find out.
Dash	Not applicable: no requirements at this level.

The gray states never claim verification, and a remote that has never been checked is never shown as passing.

Warnings and file names

The ⚠ glyph collects every warning a step carries; hover it for the reasons and remedies. Red means something is broken now (a test failed, a declared file is missing). Orange means pending work or staleness (something changed since it was verified). The pencil ✎ on a file means it changed since its last verified run.

A file name in red is itself a diagnosis: upright red means the declared file is missing, red with a dotted underline means it changed since its last test run, and red italic means it exists but you have never verified it. File rows also carry one badge per remote (GitHub, Overleaf, Zenodo, arXiv); see Connecting to External Resources.

The project file

The following text provides the technical details of how projects and steps are stored internally and are presented here for completeness. Most users will never need to look at these files.

A Project file is a JSON file in .vaibify/projects/ inside the project’s git repository, named after the Project (for example .vaibify/projects/fit-the-model.json; templates use project.json). Vaibify also reads .vaibify/workflows/ and a project.json at the repository root. Results do not live in this file: each step’s verification states and run statistics, and the Project’s attained level, are kept in .vaibify/state.json beside it, so the Project file describes the analysis and nothing else.

Field	Type	Default	Meaning
`listSteps`	array	required	The steps, in order.
`sPlotDirectory`	string	required	Where figures go (new Projects use `Plot`); a relative path is taken from the repository root. Commands use it as `{sPlotDirectory}`.
`sWorkflowName`	string	—	The Project’s display name.
`sFigureType`	string	`pdf`	Figure format, used as `{sFigureType}`.
`iNumberOfCores`	integer	`-1`	Passed to commands as `{iNumberOfCores}`.
`fTolerance`	number	`1e-6`	How closely quantitative tests must match their standards.
`fDefaultWallClockBudgetSeconds`	number	`0` (no limit)	Default runtime limit for every step; Projects made with New Project or Make Project start at four hours.
`bAutoArchive`	boolean	`false`	Push verified files to Overleaf and Zenodo automatically.
`bNoStandaloneBinaries`, `listDeclaredBinaries`	boolean, array	—	Compiled programs the Project runs, for Level 3.
`dictDeterminism`	object	—	The answer to the determinism question (`sRepeatabilityAnswer`: `speed` or `across`) and the execution profile vaibify records for it (`sExecutionProfile`); answered in the Project block, never typed. See Reproducibility.
`dictRemotes`	object	—	GitHub, Overleaf, and Zenodo connections; see Connecting to External Resources.
`iWorkflowSchemaVersion`	integer	written by vaibify	Format version; older files are upgraded when loaded.

The Project settings (⚙ above the step list) edit the common fields: Plot Dir, Figure Type, Cores, Tolerance, Auto Archive, and Runtime limit (s), alongside per-tab display settings such as Poll Interval.

The step object

Each entry in listSteps is a step. Four fields are required:

Field	Type	Meaning
`sName`	string	The step’s name; letters, digits, spaces, and hyphens.
`sDirectory`	string	Working directory, relative to the repository root; its last part must match the name.
`saPlotCommands`	string array	Commands that make figures.
`saPlotFiles`	string array	The figures they produce.

The rest are optional:

Field	Type	Default	Meaning
`sStepId`	string	from the name	Permanent identifier used in `{step:…}` tokens.
`sDescription`	string	—	What the step does.
`bRunEnabled`	boolean	`true`	The run checkbox: included when the Project runs.
`bInteractive`	boolean	`false`	A person runs the step in a terminal.
`bPlotOnly`	boolean	`false`	Skip the data analysis commands and only re-plot.
`saDataCommands`	string array	`[]`	Data analysis commands, run before the plots.
`saOutputDataFiles`	string array	`[]`	Data files the step produces.
`saInputDataFiles`	string array	`[]`	Raw files the step reads that no step produces.
`bNoInputData`	boolean	`false`	Declares that the step needs no input data.
`saDependencies`	string array	`[]`	Extra `{step:…}` tokens for dependencies not in a command.
`saTestCommands`	string array	`[]`	Additional test commands, run after the plots.
`dictTests`	object	—	The step’s generated integrity, qualitative, and quantitative tests.
`listRemoteData`	array	`[]`	Provenance of files fetched from a remote source.
`fWallClockBudgetSeconds`	number	`0` (use the Project default)	The step’s runtime limit.

A minimal automated step:

{
    "sName": "Fit the model",
    "sStepId": "fit-the-model",
    "sDirectory": "FitTheModel",
    "saInputDataFiles": ["FitTheModel/observations.csv"],
    "saDataCommands": ["python fitModel.py --input observations.csv --output posterior.npy"],
    "saOutputDataFiles": ["posterior.npy"],
    "saPlotCommands": ["python plotFit.py --samples posterior.npy --output {sPlotDirectory}/fit.{sFigureType}"],
    "saPlotFiles": ["{sPlotDirectory}/fit.{sFigureType}"]
}

Commands run from the step’s directory, while saInputDataFiles entries are relative to the repository root. A later step reads posterior.npy as {step:fit-the-model.posterior}.

The + above the step list and the step’s Edit Step dialog write these fields for you; editing the file by hand works too, and the dashboard picks up the change on its next poll.
